Magnetite Charts

March 25, 2015 admin

Magnetite Charts Info

Charts, Pictures, Information

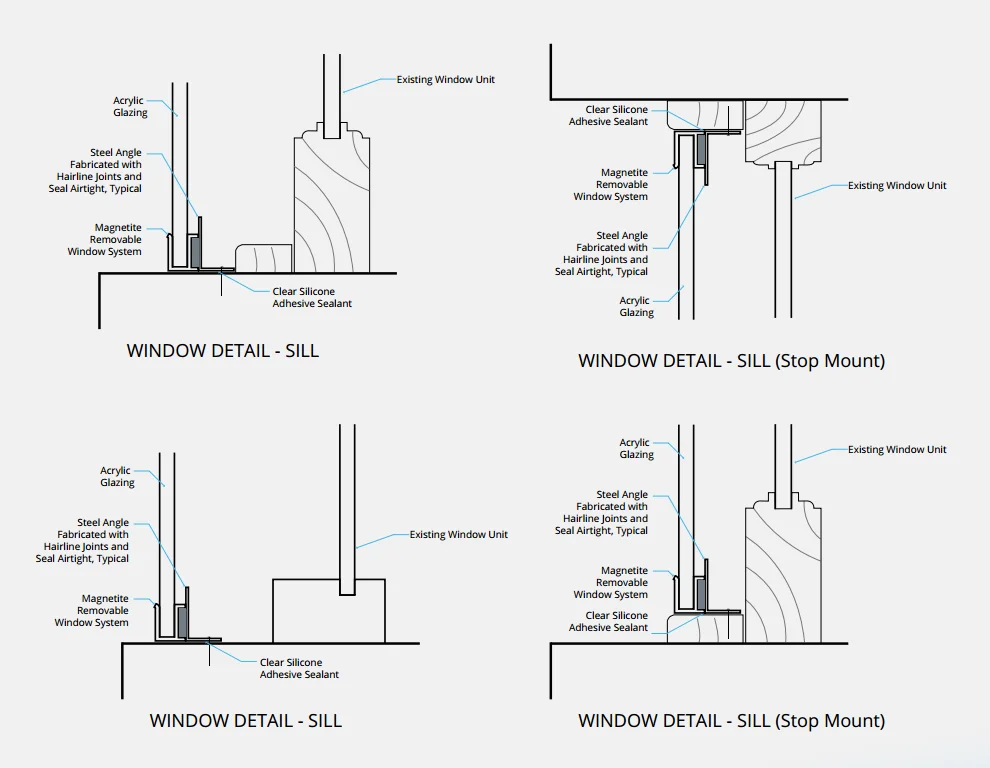

Magnetite Charts. Installation of a discrete subframe allows a clear optical grade acrylic panel to attach inside the existing window frame. Using continuous magnetic channels ensures a secure and airtight seal around the window.

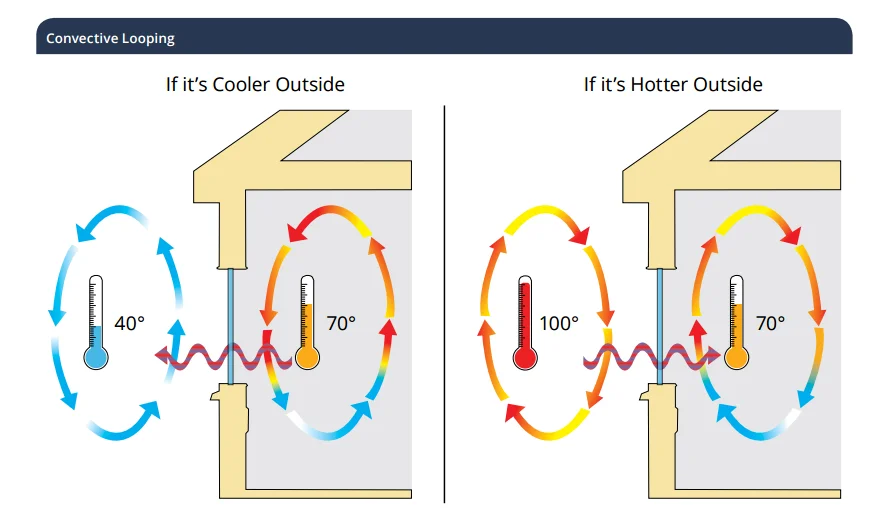

The continuous magnetic seal ensures that when the Magnetite panels are in place the window insulation system has the lowest air infiltration rate of any operational window. This seal creates an air cavity between the existing window and your Magnetite panels.



Commercial Property Mississauga

When we were called by Leasebusters Canada the ownership and employees complained of the constant sweating in the summer and bitter cold of the winter.  Additionally, the energy bills were skyrocketing. After installing Magnetite on all their windows the company realized a savings of 31% on their utility bills and just as important created a healthier work environment for all their employees.

Magnetite Charts Other Considerations

While windows are a major source of heat loss and gain in a room, there are other considerations to ensuring you create a healthy and comfortable living environment. Draughty windows and doors are other areas we can address for you. Properly insulated roofs, walls and floors are also important factors to consider in maintaining the temperature in a room. Adequate ventilation will also help improve the quality of air and help reduce excessive moisture and mould build up. For the best results a holistic approach is recommended.

Proven Results

Our system is designed to meet the specific requirements of your situation.  Our clear panels will maximize the amount of natural light entering into a room to allow passive heating in winter. During summer, we can use a range of solar control films for glare control and to minimize radiant heat. Tests by CSA® have proven that installing the Magnetite system can improve a windows’ summer performance by 76% and the winter performance by 62%. Contact Us Today. Visit Our Facebook Page.
